ZD10

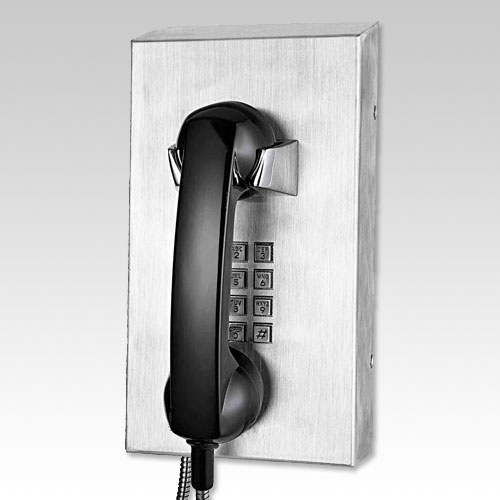

Courtesy Public Telephone ZD10 for Lobby of Hotels

  • Courtesy Public Telephone in Lobby of Hotels, Banks, Schools, Universities, Airport, Trains, Taxis and Buses Stations
  • DTMF analog telephone in stainless steel, recommended for corrosive and humid environments, optional VoIP SIP digital model.
  • Automatic dialing function when lifting the phone
  • Installation method: Wall mounting
  • The metal housing is provided with a grounding device and is completely insulated with internal and electric circuit, has the effect of electromagnetic shielding.
  • Resistant to vandalism resistant to humidity.
  • Power supply voltage of 33-60V.
  • Ringer sound level: >70dB, 1W speaker
  • Automatic dialing when picking up the phone.
  • Handset with shielded stainless steel cable resistant to tensile forces.
  • Heavy duty stainless steel keyboard.

More information…

Descripción del producto

  • Analog Ex Proof Telephone TLA227 certified by ATEX to operate in explosive areas Zone 1, built of lightweight aluminum alloy RAL2003 anti-vandal use. Also available in RAL2003 reinforced polycarbonate casing as shock resistant TLA229.
  • Handset with rugged stainless steel cord with 200Kg of resistance.
  • Line voltage from 12 to 48 VDC and ring voltage from 30 to 90 VAC.
  • Speaker with sound power of 85dB at one meter.
  • It has port to connect external loudspeaker and beacon
  • Noise canceling circuit.
  • Manual and automatic hanging magnetic detection
  • DTMF dialing and is programmable remotely via DTMF tones.

More information…
