TLS229

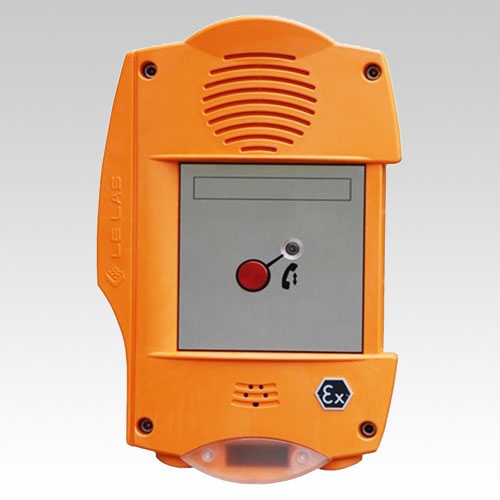

Telephone TLS229 for Tank Truck Fuel Station

  • Intrinsically safe telephone with explosion proof encapsulation with dual ATEX and IECEX certification for using in explosive atmospheres zones 1, 2, 21 and 22, providing greater security in telephone communication. On the other hand its low Low energy consumption with maximum power, a receiver adaptable to different environments, a hands-free version, a high degree of watertight protection and high shock resistance, optional IP version, parts easily removed for maintenance purposes and different options offered by LELAS make the most demanding customers choose this explosion-proof telephone 229.
  • New telephone model 229 is easy to install and to connect to the telephone line, has a wide choice of options, robust weatherproof and explosion-proof components which can be used in the harshest climatic conditions, stainless steel screws, made of reinforced polycarbonate to resist shocks, keyboard version, LCD display, call memory, integrated flashing beacon, remote testing by master station.
  • Body material / color: polyester plastic / RAL2003
  • Handset material / color: polyester plastic / black
  • Handset cord: stainless steel 100 kg resistance
  • Loudspeaker (hands-free)/microphone: vandal resistant / 5W › 78 db at 1 m
  • Hands-free speaker 50 Ω 5W watertight and anti vandal, sound power> 80 dB at 1m
  • Analog availability, line voltage from 12 to 60 Vdc and consumption <45mA ± 3
  • Optional digital version VOIP POE SIP protocol
  • Optional video camera, video door phone card and telecontrol station
  • Optional LED flash call.

More technical information…

Descripción del producto

  • Analog Ex Proof Telephone TLA227 certified by ATEX to operate in explosive areas Zone 1, built of lightweight aluminum alloy RAL2003 anti-vandal use. Also available in RAL2003 reinforced polycarbonate casing as shock resistant TLA229.
  • Handset with rugged stainless steel cord with 200Kg of resistance.
  • Line voltage from 12 to 48 VDC and ring voltage from 30 to 90 VAC.
  • Speaker with sound power of 85dB at one meter.
  • It has port to connect external loudspeaker and beacon
  • Noise canceling circuit.
  • Manual and automatic hanging magnetic detection
  • DTMF dialing and is programmable remotely via DTMF tones.

More information…
